Trumpf Press Brake Toolings

Description

We offer rich selection of standard press brake tools for Trumpf-WILA Style system. Trumpf-WILA is the main tooling system to use with press brakes Trumpf, Safan, modern Prima Power etc. and used on lot of press brakes as the optional tool system.

Main manufacturers supported:
Bystronic-Hammerle, Durma, EHT, Finn-Power, Jordi, Gizelis, LVD, Trumpf, Prima Power, RICO PRCN, Safan-Darley, STR, Ursviken etc.
Press brakes with other tooling systems could work with Trumpf-WILA punches and dies through clamping adapters.

Main features:

Safety pins and buttons (or safety clicks):

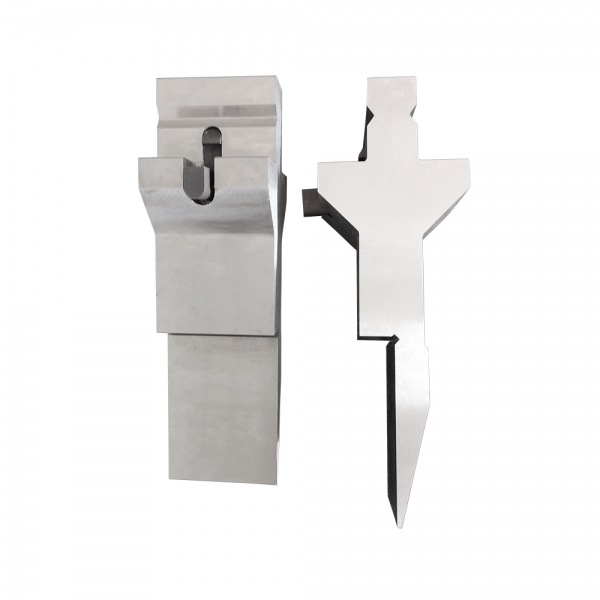

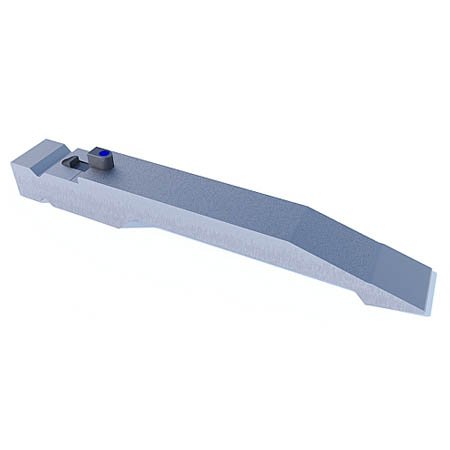

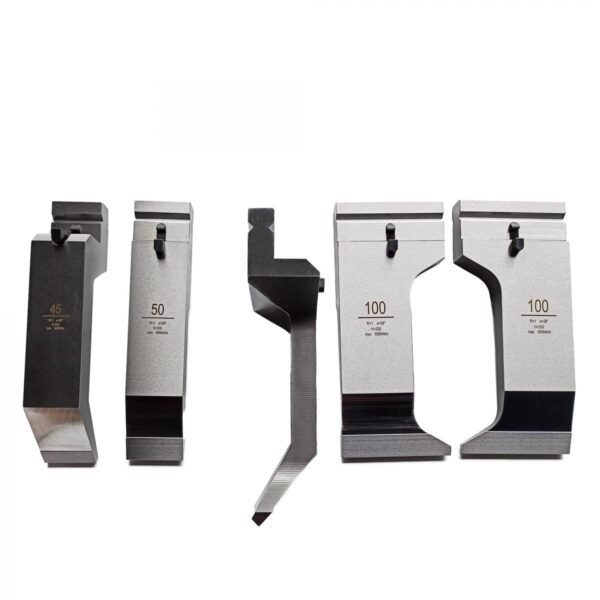

Punch parts with a weight up to 13.5 kg are equipped with Safety-Click security elements and can also be replaced vertically.In standard all punches are supplied with safety pins for side loading. Any punch could be ordered with buttons to be used for frontal loading. normally all short punches(≤100mm) euipped with 1 button,and other >100mm  Quantity of buttons 2 per piece.

Advantages: long-life tools with high resistance materials, big heights to prevent collisions and possibility of frontal loading.

Material used:  all main punches produced with 42CrMo. quenched full body.HRC47+/-3

Lengths available:

  • 500 mm solid piece,300 mm solid piece,200 mm solid piece,100 mm solid piece including horns,Small pieces 50 mm / 45 mm / 40 mm / 35 mm / 30 mm / 25 mm

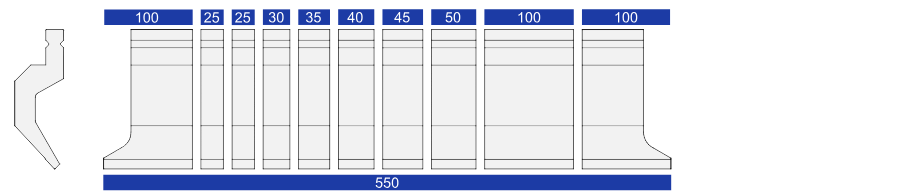

  • 550 mm sectioned / segmented set (for punches: 100 mm horn left + 25 mm + 25 mm + 30 mm + 35 mm + 40 mm + 45 mm + 50 mm + 100 mm + 100 mm horn right)

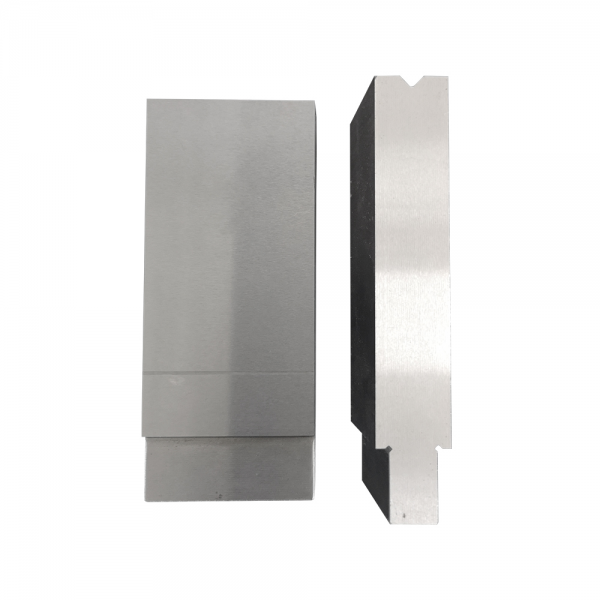

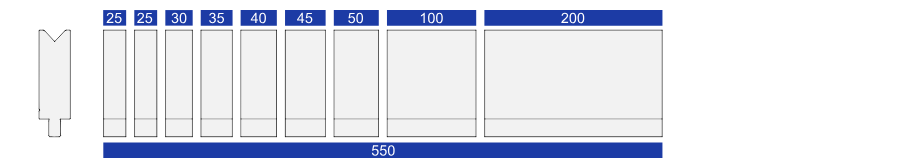

  • 550 mm sectioned / segmented set (for dies: 25 mm + 25 mm + 30 mm + 35 mm + 40 mm + 45 mm + 50 mm + 100 mm + 200 mm)

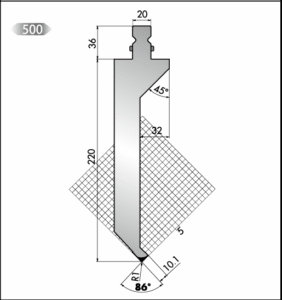

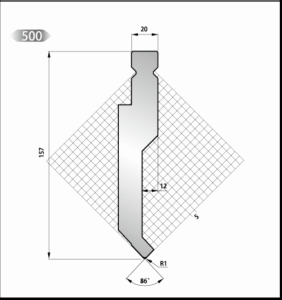

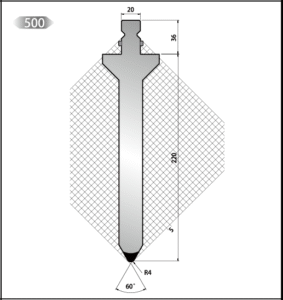

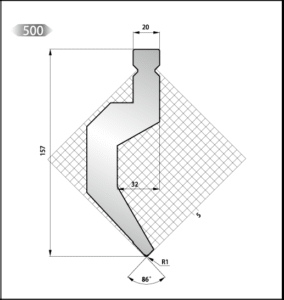

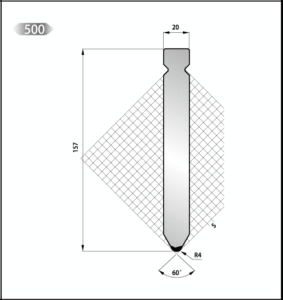

  • Puches
